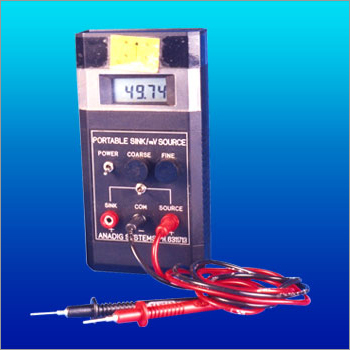

Mv & mA Sink Source Calibration Unit

Mv & mA Sink Source Calibration Unit
Mv & mA Sink Source Calibration Unit
Product Code : 13
Product Description

Mv & mA Sink Source Calibration Unit

ANADIG Digital SINK and SOURCE CALIBRATION UNIT is with Precision 4 1/2 Digit LCD Display indication for mA or mV. The Calibrator generates Source upto 20 mAor mV.

The same display is also used in SINK Mode to measure external mA with 0.01 resolution. mA range display from 0.00 to 19.99 mAwith 0.01 resolution. Resolution 0.00 mAfor Display 4 1/2 Digit (Optional Model). The Source Mode can be operated with built in Battery or optionally on Mains 230V AC.

In Battery operation mode Push Button is provided on the Front Panel to Indicate the setting of the mA Source in Battery Position. This is to avoid drain of the DPM Battery.

Technical Specification

  • Display (LCD) : 3 1/2 Digit OR 4 1/2 Digit
  • Current Sink Input : 0 to 19.99 mA 0.01mA Reduction 0 to 19.999 0.001 mA Reduction
  • Source Output : 0 to 19.99 mA
  • Source & Sink : 0 To 199.99 mv
  • Sink / Source : Selection by Toggle Switch
  • Supply : 230VAC+/-10% or Battery 9V DC Alkaline. (Selection by Toggle Switch)
  • Battery : 9V DC Eveready 216 with Low Battery indication by for Source 9V DC Battery is provided at the Back Panel for continuous and stable current output Alkaline Battery is recommended.
  • Instrument is Portable and Tabletop Mounting.


  • + / - 0.01 mA +_ 1 digit for current range
  • + / - 0.01 mv FSD for Voltage range
