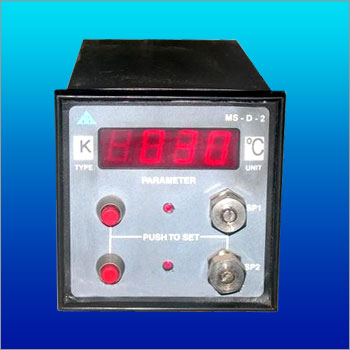

Digital Temperature Indicator-Cum-Controller

Digital Temperature Indicator-Cum-Controller
Digital Temperature Indicator-Cum-Controller
Product Code : 16
Product Description

Digital Temperature Indicator-Cum-Controller

With an aim to fulfill the varied requirements of our clients, we are engaged in offering optimum quality Digital Temperature Indicator-Cum-Controller that is used in different industrial application. It is manufactured using supreme class components and advanced technology in line with the defined ISO standards. Further, this Digital Temperature Indicator-Cum-Controller is available in numerous specifications as per the application requirements of the clients.

Features:

  • High performance

  • Easy installation

  • Robust design

  • Long working life

Technical Specification

Models

  • MS-D - Digital Temperature Indicator
  • MS-D 1 - Digital Temperature Indicating Controller with 1 Set Point
  • MS-D 2 - Digital Temperature Indicating Controller with 2 Set Point
Sensor/Input : Any one of the following inputs can be offered, (confirm type of Input and Range while ordering)
Input Sensor Type : 'J' 'K' 'T' 'K' 'R' PT 100 Unit
Range : 0-400, 0-1200, 0-400, 0-1000, 0-1700, -50 To 300, [oC ]
Optional Input : 4 to 20mA - [oC, Kg/cm, RPM, PH, %, Bar etc. ]
Resolution : 0.1 up to - 200oC to + 200oC, 1 above 200°C
Accuracy : 0.75% FSD 1 Digit for specified Range as given above for R Type Thermocouple Accuracy will be +/-1 % FSD +/-1 Digit. While Ordering specify operating Range of Temperature for J, K, T, E, R, RTD, a narrow calibration span will ensure better accuracy of the order of 0.5%, in the operating range. For 4 to 20 mA Input Accuracy - 0.2% FSD 1 Digit
Display : 3 1/2 Digit 12 mm Seven Segment LED Display, RED. Optional GREEN / ORANGE
Ambient Temperature : 0 to 60oC
Humidity : 90 % RH
Supply Voltage : 110 VAC/240 VAC 10 % 50Hz, ( D.C. Voltage or 24 VAC on request)
Power Consumption : 5 VAC maximum at 240 V AC.
Set Point : Adjustable by Potentiometer throughout the Range, Maximum 2 Set Points. Additional Set points on request.
Mounting : Flush Panel Mounting (Flame Proof / Weather Proof field Mounting Enclosures on request)

Enclosures Sizes

Option

Size

Cutout

A

96x96x150mm

92x92

B

77x144x160mm

68x138
